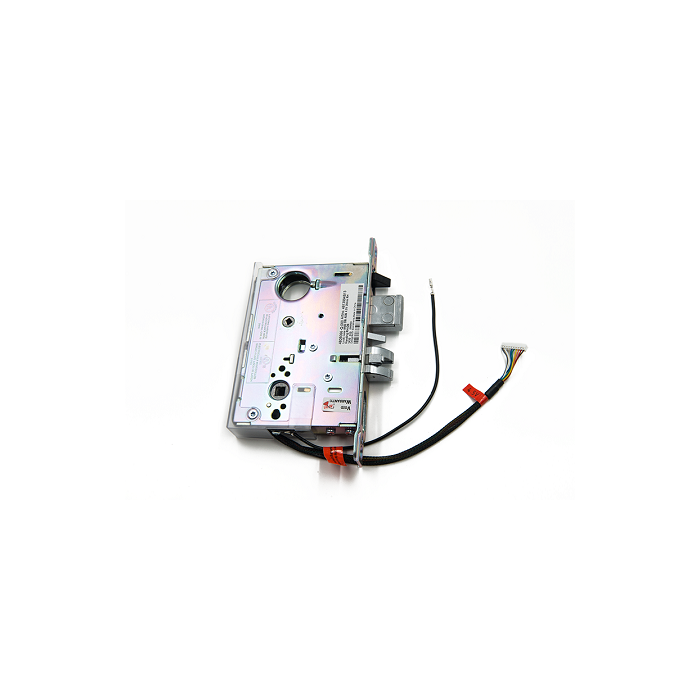

Lock case ANSI DB ADB 4.5V 32mm 4-SW LHR
SKU
:
4814440D23
Lockcase for electronic lock (ANSI, 4.5v )
The lock case is a locking mechanism which also connects the outer handle with the inner handle
Lock cases are also ordered for the correct door handing
This lock case is ANSI DB = Deadbolt Below the latch
This lock case is ADB = Automatic Deadbolt (Deadbolt will automatically engage, required for all Marriott properties)
| Lockcase technology | ADB/4 Switch |
|---|---|
| Lockcase deadbolt type | ANSI DB |
| Lockcase | ANSI 4.5v |
| Lock front width | 32mm |
ANSI mortise lock case for any type of VingCard electr. locks. Note! For Ansi lock cases, lock front cover plates including fixing screws must be ordered additionally. Striker plates to be ordered separately. Ansi lock fronts 25, 28 or 32mm width.
