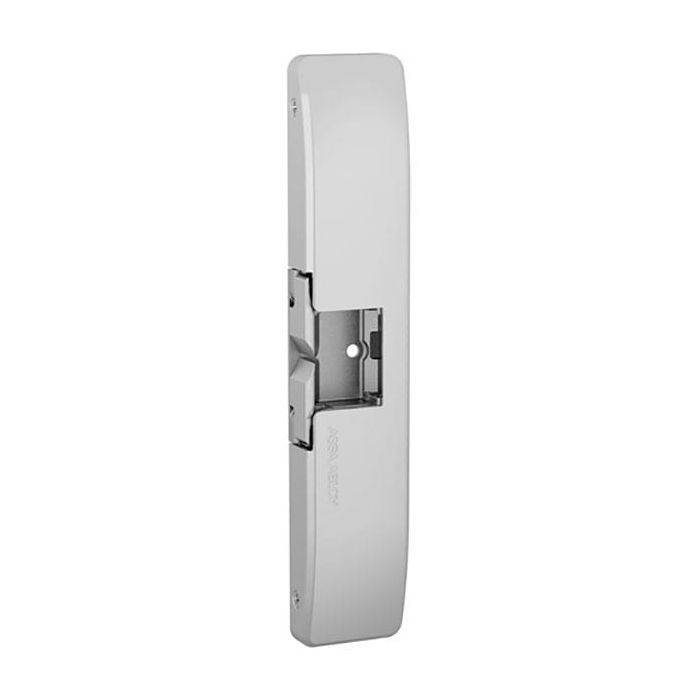

Electric Strike HES 9500, Fire Rated
SKU
:
9500-630
Electric Striker Plate
The 9500 Series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24 VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
- SecuriCare Warranty
- Fail Secure/Fail Safe
- Dual Voltage
- Fire-Rated
- Burglary Rated
- Outdoor Rated
- Grade 1
- Rim Exit Device
- Installs in metal or wood frames
- Separate base and decorative cover for easy adjustments
- 9500 Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1,000,000 cycles
- Field selectable fail secure/fail safe
- Horizontal adjustability
- Non-handed
- Internally mounted solenoid
- Accommodates up to 3/4" Pullman latch
- Dual voltage 12 or 24 VDC
